Testing Magazine APP :

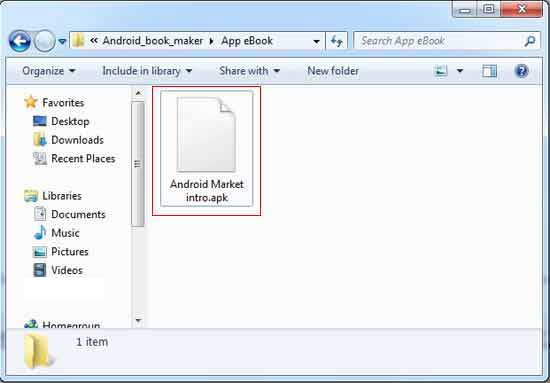

We have built an APK file as below illustration with Android magazine app maker. But now we couldn't use it untill install it on Android-powered Phone or Android Emulator. So the below content will introduce how to test it on both devices.

output apk file

How to transmit the APK file to SD card?

You may use one of the below methods:

<1> Data line or Bluetooth: copy the APK file into SD card and install it by connecting your computer and Android phone (so does Andriod Emulator, only does it use some software to connect) with them.

<2> Web server: create a web server on PC and put the APK file in one of its directorys, next visit the web and open the downloading webpage to download the APK into SD card via WiFi or other Network on the android-powered phone (so does Android Emulator).

Note: The emulator is as same as the visiable Android-powered Phone. Merely emulator provides much convenience for APP developpers to test in local computer. Next, I will tech you how to install an Android Emulator in your computer.

How to install Android Emulator?

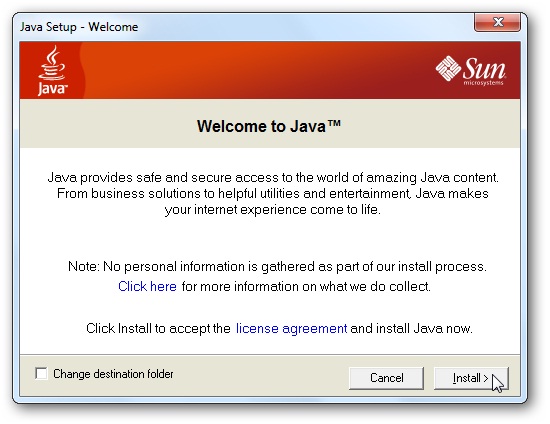

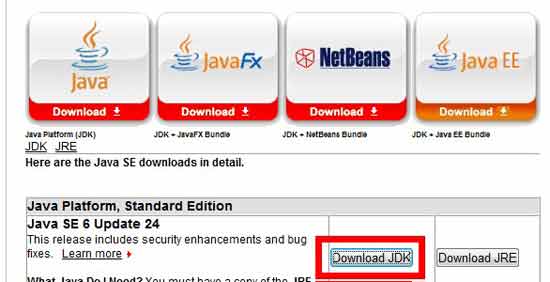

1 The Android Emulator requires JDK (Java Development Kit), download them from the link:http://www.oracle.com/technetwork/java/javase/downloads/index.html.

download jdk

virtual machine test java

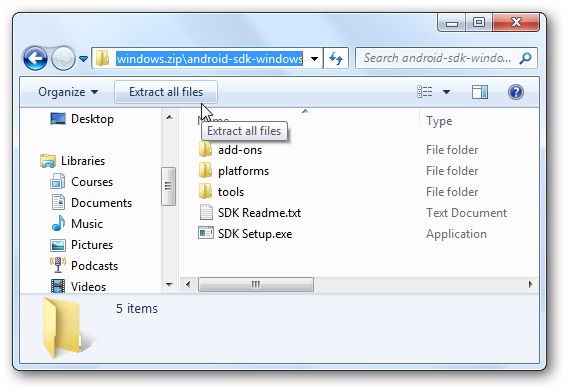

2 Then, download the Android SDK from this link: http://developer.android.com/sdk/index.html, and make sure to select the correct version for computer.  Once it's downloaded, unzip the files as normal.

save

3 In below Window, run the SDK Setup.exe to get started running Android on PC.

open sdk

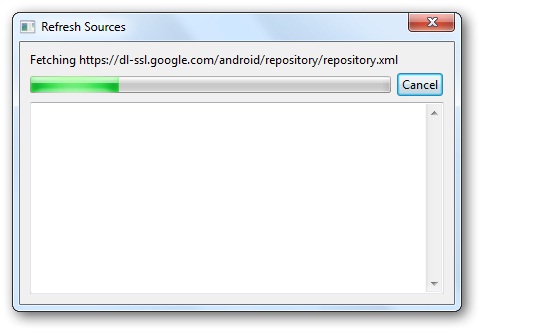

4 Wait a while, the SDK are checking Google's servers for available packages.

wait

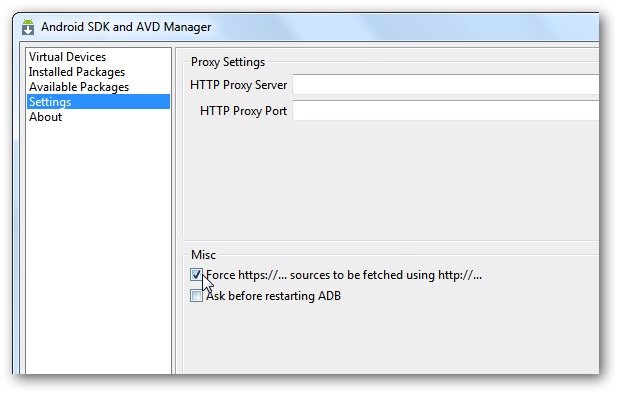

5 In below window click the tab "Settings", if face to an SSL error message.  We uncheck the checkbox: "Force https box...", click "Ok", and then reopen the setup.

sdk setting

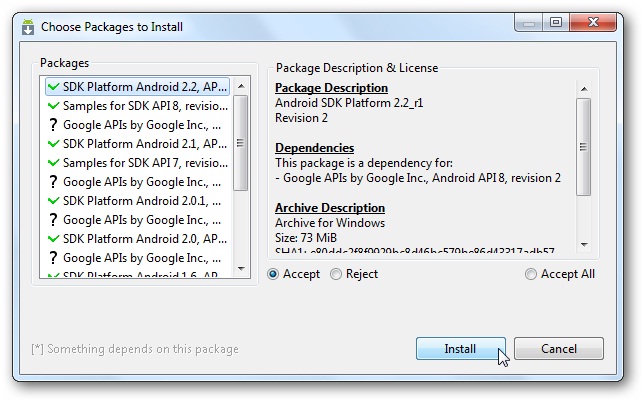

6 The Package Installer pop up.  You should choose what you need to install, and then click button "Install" to set up the Android emulator on computer.

accept

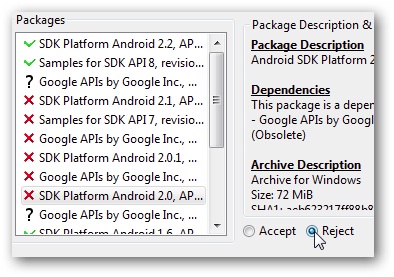

7 Acquiescently, all of the SDK platforms, samples, and APIs will be selected for installing.  It would cost quite a while to download, as several versions of Android are currently available.  Then click the "Reject" checkbox, and then click button "Install". The below illustration show the version 2.2. You could download the latest Android 2.3 as well as the older 1.6.

package

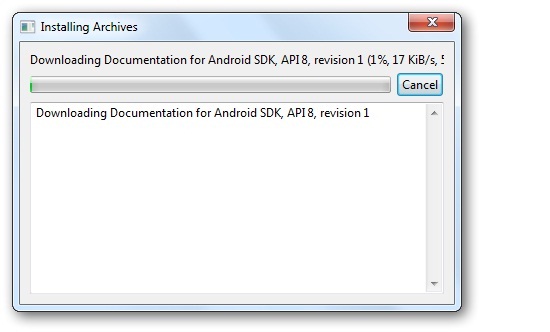

8 Once you’ve started installing, you’ll wait a while for the download and installation progress.

install archive

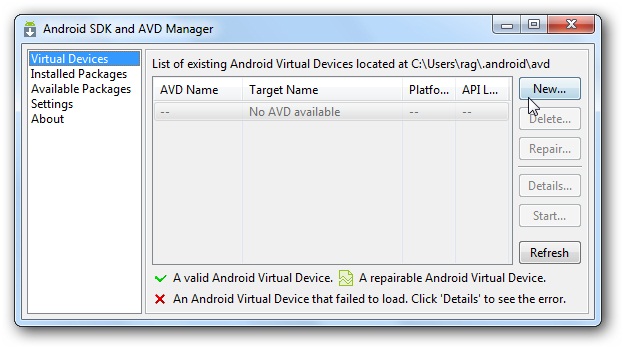

9 Setup an emulator to test the Android on computer.  Select the "Virtual Devices", and then click the button "New" on the right edge.

sdk manager

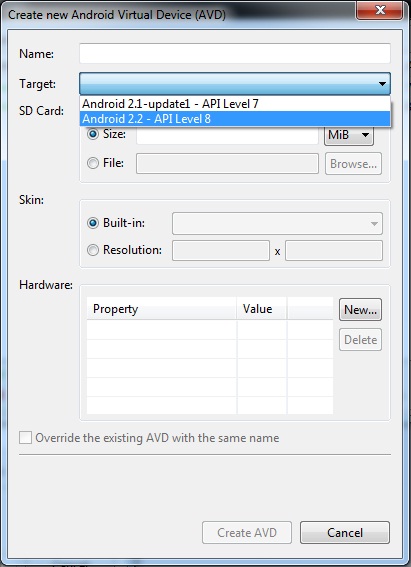

10 Enter a name for the virtualized Android, and select the version of Android from the drop-down menu.

AVD

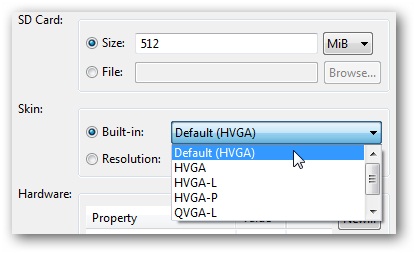

11 Enter number for the size of SD Card which is a virtual SD card that's actually an IMG file that Android will use to store users' settings and files.  Then, select a screen size from the "skin" select options. The default is a standard, Nexus One-type display, while the others are different sizes for diverse device.

sdk card

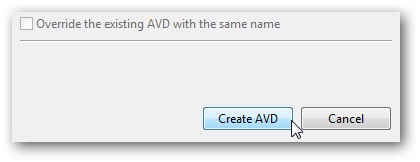

12 Next, click button "Create AVD".

override

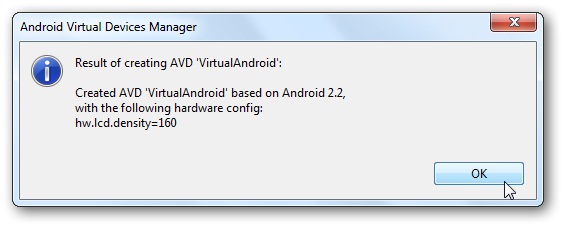

13 Wait a moment for the freezing of the program while it is creating the AVD, so just wait until the confirmation window comes up.

sdk manager prompt

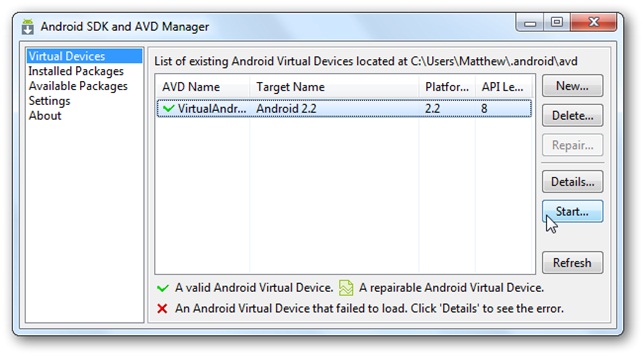

14 Now ready to run Android, select a new virtual Android, and click Start on the right edge.

sdk and avd

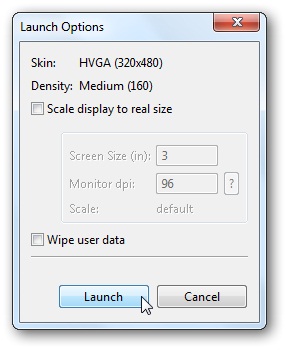

15 Scale the display window, and then click button "Launch".

launch option

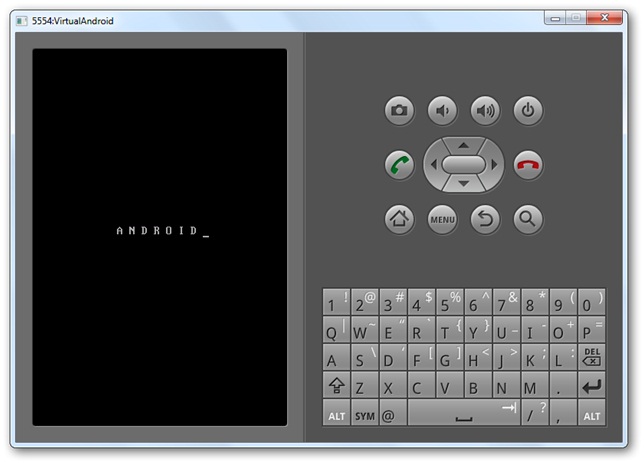

16 On emulator Android begins to load.

virtual machine launch

Note: Android may take a moment to load, especially on the first run.  After a while, the boot screen will switch to an Android boot animation.

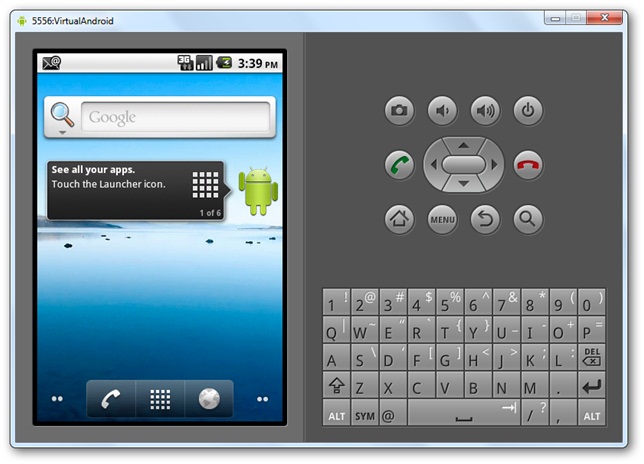

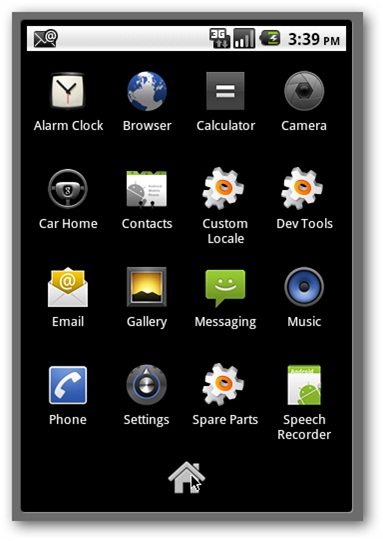

Android home screen comes up. Click any APP to launch but double-click.

virtual launched

You can open pre-installed apps from the launcher menu, though unfortunately these emulator images do not include the Android Marketplace.

android powed phone deak

Now we have installed the emulator, nevertheless how to copy the APK generated by Android magazine app maker into it?

I will tell you an easy method about how to install the output APK into the Android emulator.

ADB: Android Debug Bridge (adb) is a versatile tool lets you manage the state of an emulator instance or Android-powered device.

Note: You can find the adb tool in <sdk>/platform-tools/.

Precondition:

<1> Firstly, you must confirm that you have launched the Amulator.

<2> Secondly, find out the directory of the adb.exe.

<3> Thirdly you should know where the output APK file.

Now click "Start" on the down-left cornor of your screen, and enter letters "cmd" in the searching form , enter to the command line black window and enter command line.

command line to install the output APK in android emulator

<1> Enter command line: cd C:\Program Files\Android\android-sdk-windows\platform-tools (adb.exe root directory, you should enter your correct directory).

<2> Enter command linse: adb devices

<3> Enter command lines: adb "the directory where your APK files saved" (Note: you must enter the double quotation marks if your output APK file name contains blank space, otherwise it won't work normally) .

Note: now you have installed the APK file into the emulator, you could begin to test it.
